Chain
No.
|
Average
Pitch
Inches
|
Average
Ultimate
Strength
Lbs.
|
Rated
Working
Load
Lbs.
|
Approx
Links
in
10 Feet
|
Average
Weight
Per
Foot
|

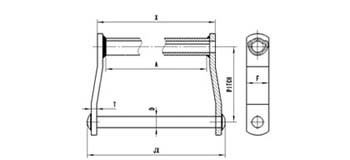

DIMENSIONS IN INCHES
|
|
Overall
Width
|
Length
of
Bearing
|
Rivet
Dia.
|
Side
Bar
Thickness
|
Side
Bar
Width
|
Max
Spkt.
Face
|
|
JK
|
X
|
D
|
T
|
F
|
A
|
|
WD102
|
5.000
|
51,000
|
8,500
|
24
|
11.8
|
9-1/4
|
7-3/4
|
3/4
|
3/8
|
1-1/2
|
6-3/8
|
|
WDH102
|
5.000
|
60,000
|
10,000
|
24
|
11.8
|
9-1/4
|
7-3/4
|
3/4
|
3/8
|
1-1/2
|
6-3/8
|
|
WD110
|
6.000
|
51,000
|
8,500
|
20
|
12.0
|
11-7/8
|
10-3/8
|
3/4
|
3/8
|
1-1/2
|
9
|
|
WDH110
|
6.000
|
60,000
|
10,000
|
20
|
12.0
|
11-7/8
|
10-3/8
|
3/4
|
3/8
|
1-1/2
|
9
|
|
WD120
|
6.000
|
70,000
|
11,700
|
20
|
19.7
|
12
|
10-1/8
|
7/8
|
1/2
|
2
|
8-1/2
|
|
WDH120
|
6.000
|
90,000
|
15,000
|
20
|
19.7
|
12
|
10-1/8
|
7/8
|
1/2
|
2
|
8-1/2
|
|
WD118
|
8.000
|
70,000
|
11,700
|
15
|
19.8
|
16-3/4
|
14-7/8
|
7/8
|
1/2
|
2
|
13-1/4
|
|
WDH118
|
8.000
|
90,000
|
15,000
|
15
|
19.8
|
16-3/4
|
14-7/8
|
7/8
|
1/2
|
2
|
13-1/4
|
|
WD480
|
8.000
|
70,000
|
11,700
|
15
|
18.1
|
14-5/8
|
12-3/4
|
7/8
|
1/2
|
2
|
11
|
|
WDH480
|
8.000
|
90,000
|
15,000
|
15
|
18.1
|
14-5/8
|
12-3/4
|
7/8
|
1/2
|
2
|
11
|
|
|
